Marantz Model 10 Reference Integrated Amplifier
Fabricante:
Marantz - (
• Ver todos os produtos da marca
Marantz
)
Marantz Model 10 Reference Integrated Amplifier
Amplificador Integrado de Referência Marantz Modelo 10
Um amplificador dual-mono classe D de 250 Wpc com estágio fonográfico MM/MC
O Modelo 10 utiliza a famosa tecnologia Purifi classe D em seu estágio de saída e é totalmente dual mono, incluindo as fontes de alimentação comutadas de alta tecnologia. Há um estágio fonográfico MM ou MC integrado e entradas e saídas balanceadas e single-ended. O amplificador de fones de ouvido possui ganho selecionável e controles de tom para graves e agudos.

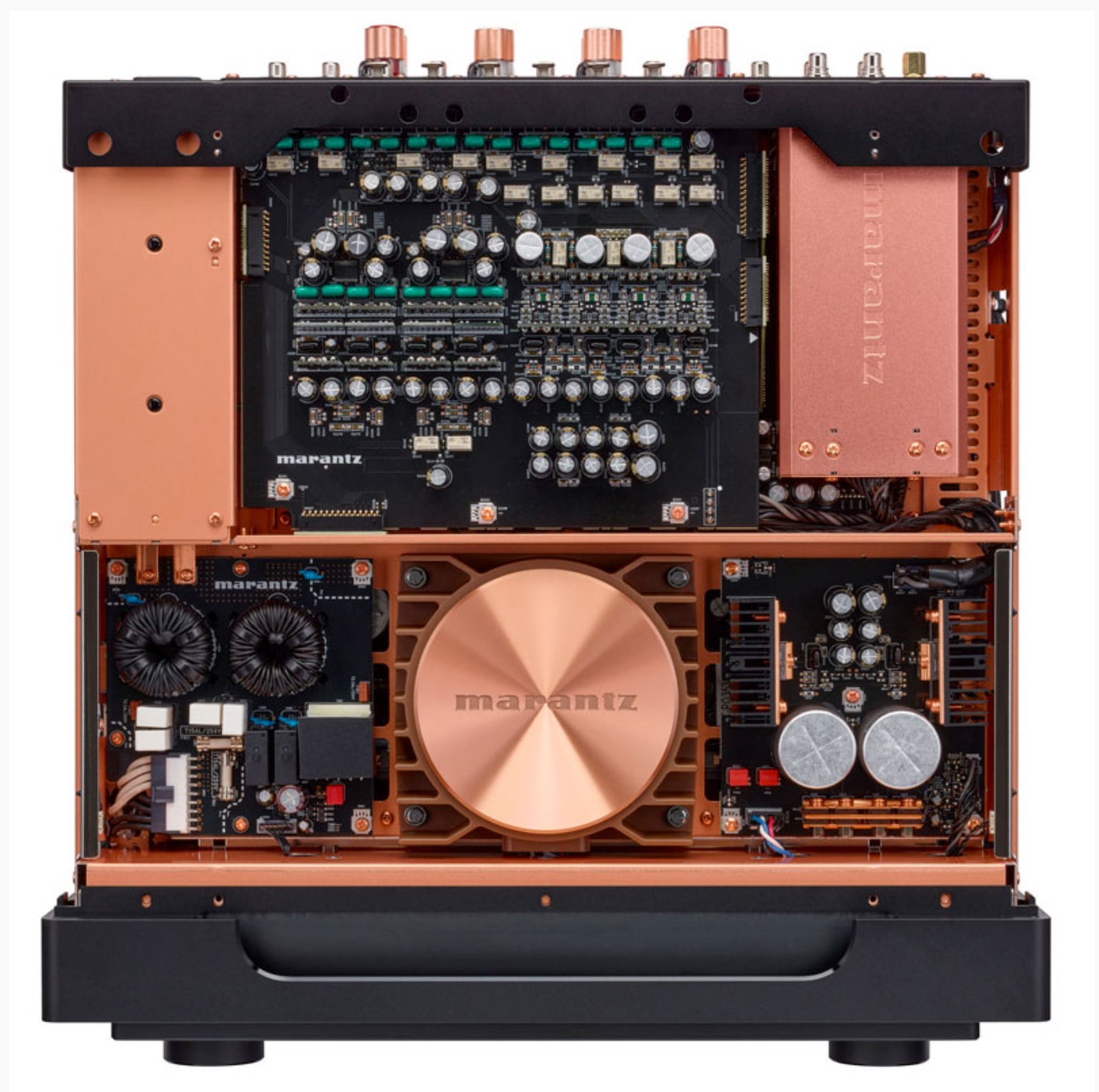

O Modelo 10 utiliza um chassi de separação tripla camada revestido de cobre para isolar os circuitos de alta e baixa potência. A parte frontal em alumínio escovado apresenta um display OLED colorido, e a tampa superior em malha permite a visualização da iluminação interna e da marca.
Especificações
Potência de saída (8 Ohm, 4 Ohm): 250 W, 500 W
Fator de amortecimento: 500
Entradas: 2 x linha XLR estéreo, 3 x linha RCA estéreo, 1 x RCA phono estéreo
Saídas: 1 x RCA Rec estéreo, 1 x RCA pré estéreo, 1 x XLR pré estéreo, 2 x alto-falantes estéreo, 1 x fone de ouvido
Dimensões (L x A x P): 440 × 192 × 473 mm (17,3" x 7,56" x 18,6")
Peso: 74,3 lb. (33,7 kg)
Features
• 2 Channels
• 250 Watts per Channel with lowest distortion ever from Marantz
• All-New Marantz SMPS
• Fully balanced design with dual mono amplifiers and individual power supplies and individual power supplies
• Phono MM/MC
• Power Amplifier mode with Pre-Amplifier switch off for use with LINK 10n
• FCBS supports use of multiple MODEL 10 amps to power larger systems
• Copper-plated chassis
• Compartmentalized, ultra-rigid construction for minimised internal interference plus exclusive meshtop cover with background illumination
Specifications
• Rated Output Power:
250W + 250W (8ohm, 20Hz-20kHz, THD 0.05%)
•
500W + 500W (4ohm, 20Hz-20kHz, THD 0.05%)
• Speaker Impedance:
4~16ohm
• Frequency Response:
5Hz~60kHz +0dB/-3dB
•
20Hz~20kHz +0dB/-0.3dB
• Total Harmonic Distortion:
0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
• Damping Factor:
500 (8ohm, 20Hz-20kHz)
• Input Sensitivity: Phono Input:
MM: 3.6 mV / 36 kohm
•
MC (Low): 400 μV / 33 ohm
•
MC (Mid): 400 μV / 100 ohm
•
MC (High): 400 μV / 390 ohm
• RIAA Deviation:
20 Hz - 20 kHz ±0.5 dB (MM/MC)
• Phono Maximum Input:
MM: 80mV
•
MC: 8mV
• Input Sensitivity: CD/LINE/RECORDER
350 mV/41kohm (Unbalanced)
•
700 mV/36kohm
• Input Sensitivity: Power Amp Input:
Unbalanced: 1.58V / 41kohm (Gain: 29dB)
•
Balanced: 3.16V / 15kohm (Gain: 24dB)
• SN Ratio:
PHONO (MM): 88dB
•
PHONO (MC): 76dB
•
CD: 122dB
•
Balanced: 122dB
• Headphone Output Level:
130mW / 32 ohms
• Tone Control:
BASS: 50Hz ±10dB
•
TREBLE: 15kHz ±10dB
• Power Consumption:
270W
•
0.1W (at Standby)
• Phono Input:
Yes (MM / MC)
•
Marantz Musical Premium Phono EQ with Selectable MC impedance (3 positions)
• Analog Input: (including Phono) / REC Out (RCA)
4 / 1
•
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
•
(RECORDER: Thick nickel plated independent terminals)
• Balanced XLR Input:
2
• Power Amp Direct:
Yes (RCA: Thick nickel plated independent terminals / XLR)
• Pre-Out:
Yes (RCA: Thick nickel plated independent terminals / XLR)
• 2 Sets of Speaker Output:
Yes (Bi-wiring)
• Speaker Terminal:
Marantz Original SPKT-100+, 2 (High quality and high-purity copper plated)
• Headphone Output:
1 (Turns off the speaker automatically when headphone is inserted)
• Heatsink for Power Amplifier:
Extruded Aluminum
• Foot:
Solid Aluminum Copper plated (H: 18.5mm)
• Input Selector:
Solid aluminum (Bearing construction)
• Front (Center) Panel:
Anodized machined aluminum
• Front Panel Illumination:
Yes (All sides, Dimmer)
• Side Cover:
Aluminum (Thickness: Max 15.8mm)
• Top Cover:
Aluminum (Thickness: 6mm)
• Top Cover (Center) Ventilation Hole Material:
Stainless mesh
• Interior Illumination:
Yes, dimmable
• Rear Panel:
Copper Plated
• Chassis Material:
Copper Plated
• Bottom Layer / Bottom Plate:
Triple layer Copper plated
• Volume Knob:
Solid aluminum (Bearing construction)
• Unit Dimensions: (W × H × D mm)
440 × 192 × 473
• Cabinet Size: (W × H × D mm)
440 × 192 × 422
• Net Weight:
33.7kg
• Packaging Dimensions: (W × H × D mm)
600 × 379 × 540
• Packaging Gross Weight:
39.0kg
• Carton Color:
1 Colour (Material color: Brown, Printing: Black)
• Panel Color:
Black / Marantz Champagne
Control
• Remote Control Bus Terminal:
Yes (RC-5 In / Out)
• Remote Internal / External Switch:
Yes
• Flasher Input:
Yes
• AC Inlet:
Yes
• Other: (Bus System)
F.C.B.S. (Floating Control Bus System)
• Remote Controller:
10 series Universal Remote control
• Unit Control: (Button)
Tact Switch: 1 (POWER)
• Unit Control: (Knob)
2 (VOLUME, INPUT SELECTOR)
• LED Indicators:
POWER: 1 White, Protection: 1 Orange, Illumination (Edge): White, Interior: White
• Front Panel Display:
New HD TFT Color Display
• Dimmer for Front Display:
20 steps
• Level Meter:
Yes (HD Display)
• Volume Display:
-infinity/-99.5dB - 0dB / 0.5 step (default), 0-100 / 0.5 step, switchable
• Last Function Memory:
Yes
• Auto Standby Mode:
Yes
• Remote Controller Model:
RC004PMND
• Battery:
Yes (AAA ×2)
• Power Cord:
Yes (ALL region / Audio Grade / OFC)
• Other: (Certificate of Authenticity)
CoA card
Preço
: R$ 99.970,00
Quantidade
Cor
Preto
