Mark Levinson Nº526 Preamplifier


por: R$ 149.990,00
em até 12x no cartão
Boleto Bancário (parcela única)
R$ 149.990,00
Disponibilidade em estoque: Consulte-nos.
Previsão de entrega após faturamento (emissão da nota fiscal): de 3 a 5 dias uteis, consulte.



1x no cartão
 R$ 149.990,00
2x no cartão R$ 78.609,76
3x no cartão
 R$ 53.141,46

5x no cartão
 R$ 32.829,81
6x no cartão R$ 27.750,65
10x no cartão
 R$ 17.044,86
4x no cartão R$ 40.523,55



12x no cartão R$ 14.335,29




Mark Levinson Nº526 Preamplifier
Fabricante: Mark Levinson - (• Ver todos os produtos da marca Mark Levinson )
Mark Levinson - No 526 Preamplifier

- Unfettered Purity: Pure Path Circuit Design
- Attaining Analog Mastery: The Folded Cascode
- Pure Phono: Class A for a Classic Medium
- A Mark Levinson Hallmark: The Precision Link DAC
- Get Personalized Performance with Precision Link DAC Filters
-Teeming with Flexibility: Stocked with Pure Path Digital Inputs
- No-Compromise Build: Military-Grade Components
- Clari-Fi Music Restoration Technology Defeats Compression
- Loaded with Connectivity: Completing the Signal Path

Highlights
• Pure Path discrete, direct-coupled, fully balanced, dual-monaural signal path
• Discrete, balanced R-2R Ladder volume control for precision and performance
• 32-bit Precision Link DAC with three selectable filters and seven power supplies
• Supports high-resolution PCM (up to 32-bit/192kHz) and DSD (up to 5.6MHz)
• 12 analog, digital, and phono inputs; balanced, single-ended, headphone outputs
• Class A Pure Phono stage with physically separated channels for MC and MM
• Class A Main Drive Headphone output for up to 32-ohm headphones
• Selectable fourth-order, 80Hz high-pass filter for seamless subwoofer integration
• Designed and handcrafted in the U.S.A.

№ 526:
LINE STAGE GAIN, NORMAL GAIN SETTING : 13.5dB balanced; 7.5dB single-ended
LINE STAGE FREQUENCY RESPONSE, 20HZ TO 20KHZ : ±0.02dB
LINE STAGE FREQUENCY RESPONSE, 0.4HZ TO 370KHZ : +0.1 / -3dB
THD+N @ 1KHZ (2VRMS SINGLE-ENDED OR 4VRMS BALANCED OUTPUT) : <0.003%
SIGNAL-TO-NOISE RATIO (REF. TO 2VRMS SINGLE-ENDED OR 4VRMS BALANCED, MAX VOL) : >115dB @ 1kHz
CROSSTALK @ 1KHZ : <-107dB
CHANNEL SEPARATION : below noise floor (>115dB @ 1kHz)
INPUT IMPEDANCE : >45kΩ
OUTPUT IMPEDANCE : <80Ω single ended, <160Ω balanced
MAXIMUM INPUT LEVEL, NORMAL GAIN SETTING : >10VRMS, single ended, >15VRMS, balanced
MAXIMUM OUTPUT LEVEL : >11VRMS single ended, >22VRMS balanced
HEADPHONE OUTPUT IMPEDANCE : selectable; <3Ω or 75Ω
HEADPHONE MAXIMUM OUTPUT, LOW IMPEDANCE SETTING, 30Ω (0.3W), 20 TO 20KHZ, <0.1% THD : >3V RMS
HEADPHONE MAXIMUM OUTPUT, LOW IMPEDANCE SETTING, 300Ω, 20HZ TO 20KHZ, <0.1% THD : >9V RMS
HEADPHONE THD+N, 20HZ TO 20KHZ, 2V RMS : <0.03% @ 30Ω, <0.01% @ 300Ω

PHONO STAGE :
RIAA FREQUENCY RESPONSE : 20Hz to 20kHz, ±0.3dB
INFRASONIC FILTER : defeatable, 15Hz, 2nd order (12dB/octave)

MOVING MAGNET MODE :
INPUT RESISTANCE : 47kΩ
INPUT CAPACITANCE : selectable; 50, 100, 150, 200, or 680pF
GAIN : 40dB @ 1kHz
THD+N, 20HZ TO 20KHZ, 2VRMS OUTPUT : <0.03%

MOVING COIL MODE :
INPUT RESISTANCE : selectable; 20, 33, 50, 66, 100, 200, 330, 500, 1000, or 47kΩ
INPUT CAPACITANCE : 50pF
GAIN : selectable; 50, 60, or 70dB @ 1kHz
THD+N, 20HZ TO 20KHZ, 2VRMS OUTPUT : <0.02%, 50 or 60dB settings, <0.04, 70db setting
DAC OUTPUT VOLTAGE @ FULL SCALE (0DBFS) : 3.7V RMS
DAC FREQUENCY RESPONSE : 20Hz to 20kHz, +0 / –0.2dB
DAC THD, FULL SCALE (0DBFS) : <0.0001% @ 1kHz, <0.0003% @ 20kHz
DAC SNR (REFERRED TO 3.7VRMS / 0DBFS OUTPUT) : >120dB (A-weighted)
PCM SAMPLE RATES/BIT DEPTH : 32, 44.1, 48, 88.2, 96, 176.4, or 192kHz; up to 32 bits
DSD : Native or DoP (DSD over PCM), single- and double-speed (2.8 and 5.6MHz)

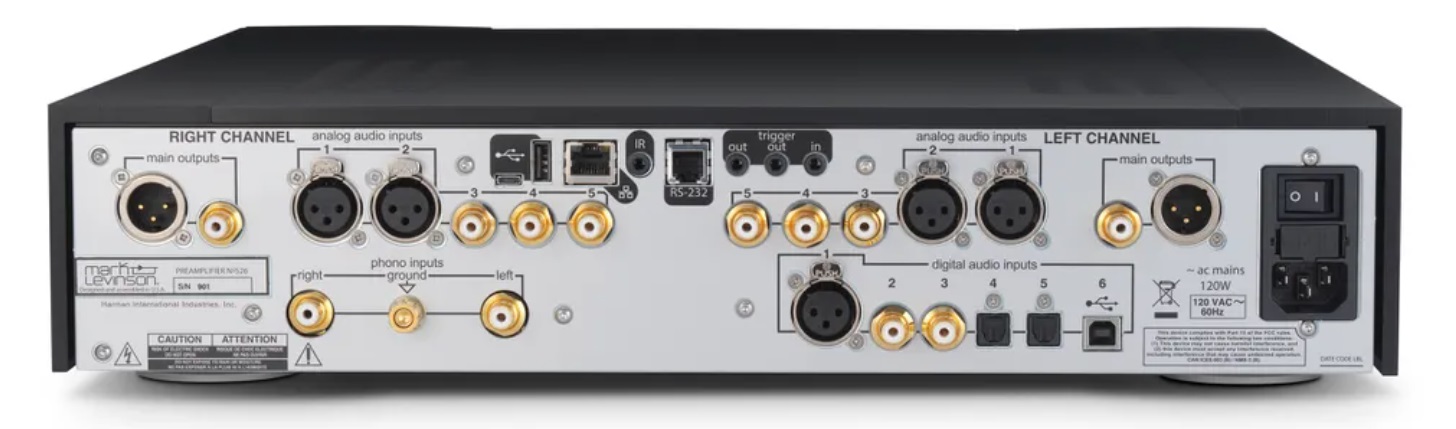

ANALOG INPUTS : 2 balanced (XLR), 3 single-ended (RCA) line, 1 single-ended (RCA) phono w/ ground
DIGITAL INPUTS : 1 balanced (XLR); 2 coaxial (RCA); 2 optical (Toslink); 1 USB-B asynchronous
ANALOG OUTPUTS : 1 balanced (XLR); 1 pair single-ended (RCA), 1 headphone (¼", 6.3mm TS)
CONTROL CONNECTORS : Ethernet (RJ45), RS-232 (RJ12), Trigger In and Out, IR In, USB-A, Mini USB
MAINS VOLTAGE : 100VAC, 115VAC, or 230VAC, factory set
POWER CONSUMPTION : 0.4W Green Standby, 5W Power Save, 72W Normal Standby, 75W On, idle

DIMENSIONS :
Height (with feet) : 3.75" (10.2cm)
Height (without feet) :3.25" (8.9cm)
Width : 17.25" (43.8cm)
Depth : 18" (45.7cm)

WEIGHT :
Net weight : 41 lbs (18.5kg)
Shipping weight : 60 lbs (27.2kg)
Preço: R$ 149.990,00
